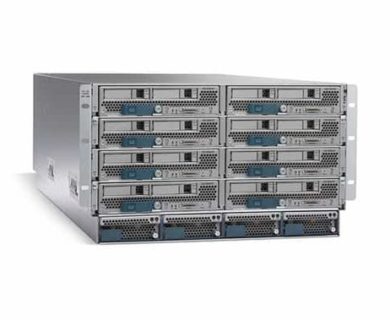

Server Networking With gen 2 UCS Hardware

** this post has been slightly edited thanks to feedback from Sean McGee**

In previous posts I’ve outlined:

If you’re not familiar with UCS networking I suggest you start with those for background.  This post is an update to those focused on UCS B-Series server to Fabric Interconnect communication using the new hardware options announced at Cisco Live 2011.  First a recap of the new hardware:

The UCS 6248UP Fabric Interconnect

The 6248 is a 1RU model that provides 48 universal ports (1G/10G Ethernet or 1/2/4/8G FC.)  This provides 20 additional ports over the 6120 in the same 1RU form factor.  Additionally the 6248 is lower latency at 2.0us from 3.2us previously.

The UCS 2208XP I/O Module

The 2208 doubles the total uplink bandwidth per I/O module providing a total of 160Gbps total throughput per 8 blade chassis.  It quadruples the number of internal 10G connections to the blades allowing for 80Gbps per half-width blade.

UCS 1280 VIC

The 1280 VIC provides 8x10GE ports total, 4x to each IOM for a total of 80Gbps per half-width slot (160 Gbs with 2x in a full-width blade.)  It also double the VIF numbers of the previous VIC allowing for 256 (theoretical)  vNICs or vHBAs.  The new VIC also supports port-channeling to the UCS 2208 IOM and iSCSI boot.

The other addition that affects this conversation is the ability to port-channel the uplinks from the 2208 IOM which could not be done before (each link on a 2104 IOM operated independently.)  All of the new hardware is backward compatible with all existing UCS hardware.  For more detailed information on the hardware and software announcements visit Sean McGee’s blog where I stole these graphics: http://www.mseanmcgee.com/2011/07/ucs-2-0-cisco-stacks-the-deck-in-las-vegas/.

Let’s start by discussing the connectivity options from the Fabric Interconnects to the IOMs in the chassis focusing on all gen 2 hardware.

There are two modes of operation for the IOM: Discrete and Port-Channel.  in both modes it is possible to configure 1, 2 , 4, or 8 uplinks from each IOM in either Discrete mode (non-bundled) or port-channel mode (bundled.)

UCS 2208 fabric Interconnect Failover


Discrete Mode:

In discrete mode a static pinning mechanism is used mapping each blade to a given port dependent on number of uplinks used.  This means that each blade will have an assigned uplink on each IOM for inbound and outbound traffic.  In this mode if a link failure occurs the blade will not ‘re-pin’ on the side of the failure but instead rely on NIC-Teaming/bonding or Fabric Failover for failover to the redundant IOM/Fabric.  The pinning behavior is as follows with the exception of 1-Uplink (not-shown) in which all blades use the only available Port:

2 Uplinks

Blade

Port 1

Port 2

Port 3

Port 4

Port 5

Port 6

Port 7

Port 8

1


2


3


4


5


6


7


8


4 Uplinks

Blade

Port 1

Port  2

Port 3

Port 4

Port 5

Port 6

Port 7

Port 8

1


2


3


4


5


6


7


8


8 Uplinks

Blade

Port 1

Port2

Port 3

Port 4

Port 5

Port 6

Port 7

Port 8

1


2


3


4


5


6


7


8


The same port-pinning will be used on both IOMs, therefore in a redundant configuration each blade will be uplinked via the same port on separate IOMs to redundant fabrics.  The draw of discrete mode is that bandwidth is predictable in link failure scenarios.  If a link fails on one IOM that server will fail to the other fabric rather than adding additional bandwidth draws on the active links for the failure side.  In summary it forces NIC-teaming/bonding or Fabric Failover to handle failure events rather than network based load-balancing.  The following diagram depicts the failover behavior for server three in an 8 uplink scenario.

Discrete Mode Failover


In the previous diagram port 3 on IOM A has failed.  With the system in discrete mode NIC-teaming/bonding or Fabric Failover handles failover to the secondary path on IOM B (which is the same port (3) based on static-pinning.)

Port-Channel Mode:

In Port-Channel mode all available links are bonded and a port-channel hashing algorithm (TCP/UDP + Port VLAN, non-configurable) is used for load-balancing server traffic.  In this mode all server links are still ‘pinned’ but they are pinned to the logical bundle rather than individual IOM uplinks.  The following diagram depicts this mode.

Port-Channel Mode


In this scenario when a port fails on an IOM port-channel load-balancing algorithms handle failing the server traffic flow to another available port in the channel.  This failover will typically be faster than NIC-teaming/bonding failover.  This will decrease the potential throughput for all flows on the side with a failure, but will only effect performance if the links are saturated.  The following diagram depicts this behavior.


In the diagram above Blade 3 was pinned to Port 1 on the A side.  When port 1 failed port 4 was selected (depicted in green) while fabric B port 6 is still active leaving a potential of 20 Gbps.

Note: Actual used ports will vary dependent on port-channel load-balancing.  These are used for example purposes only.

As you can see the port-channel mode enables additional redundancy and potential per-server bandwidth as it leaves two paths open.  In high utilization situations where the links are fully saturated this will degrade throughput of all blades on the side experiencing the failure.  This is not necessarily a bad thing (happens with all port-channel mechanisms), but it is a design consideration.  Additionally port-channeling in all forms can only provide the bandwidth of a single link per flow (think of a flow as a conversation.)  This means that each flow can only utilize 10Gbps max even though 8x10Gbps links are bundled.  For example a single FTP transfer would max at 10Gbps bandwidth, while 8xFTP transfers could potentially use 80Gbps (10 per link) dependent on load-balancing.

Next lets discuss server to IOM connectivity (yes I use discuss to describe me monologuing in print, get over it, and yes I know monologuing isn’t a word) I’ll focus on the new UCS 1280 VIC because all other current cards maintain the same connectivity.  the following diagram depicts the 1280 VIC connectivity.


The 1280 VIC utilizes 4x10Gbps links across the mid-pane per IOM to form two 40Gbps port-channels.  This provides for 80Gbps total potential throughput per card.  This means a half-width blade has a total potential of 80Gbps using this card and a full-width blade can receive 160Gbps (of course this is dependent upon design.)  As with any port-channel, link-bonding, trunking or whatever you may call it, any flow (conversation) can only utilize the max of one physical link (or back plane trace) of bandwidth.  This means every flow from any given UCS server has a max potential bandwidth of 10Gbps, but with 8 total uplinks 8 different flows could potentially utilize 80Gbps.

This becomes very important with things like NFS-based storage within hypervisors.  Typically a virtualization hypervisor will handle storage connectivity for all VMs.  This means that only one flow (conversation) will occur between host and storage.  In these typical configurations only 10Gbps will be available for all VM NFS data traffic even though the host may have a potential 80Gbps bandwidth.  Again this is not necessarily a concern, but a design consideration as most current/near-future hosts will never use more than 10Gbps of storage I/O.

Summary:

The new UCS hardware packs a major punch when it comes to bandwidth, port-density and failover options.  That being said it’s important to understand the frame flow, port-usage and potential bandwidth in order to properly design solutions for maximum efficiency.  As always comments, complaints and corrections are quite welcome!

GD Star Rating
loading...

Technology Passion

The May 24th IDC report on server market share by the IDC validated a technology I’ve been passionate about for some time; Cisco unified Computing System (UCS.)  For the first time since UCS’s launch two years ago Cisco reported server earnings to IDC with amazing result – #3 in global Blade Server market share and 1.6% factory revenue share overall for servers as a whole.  Find the summary of blades by Kevin Houston here: http://bladesmadesimple.com/2011/05/q1-2011-idc-worldwide-server-market-shows-blade-server-leader-as/ and the IDC report here: http://www.idc.com/getdoc.jsp?containerId=prUS22841411

This report shows that in two years Cisco has either taken significant market share from incumbents, driven new demand, or both.  Regardless of where the numbers came from they are impressive, as far as servers go it’s close to David and Goliath proportions and still playing out with Cisco about 1% behind IBM in the #2 spot.  I have been a ‘cheerleader’ for UCS for nearly its entire existence but didn’t start that way.  I describe the transition here: http://www.definethecloud.net/why-cisco-ucs-is-my-a-game-server-architecture

Prior to Cisco UCS I was a passionate IBM BladeCenter advocate, great technology, reliable hardware and a go-to brand.  I was passionate about IBM.  When IBM launched the BladeCenter H they worked hard to ensure customer investment protection and in doing so anchored the H chassis as a whole.  They hindered technical enhancements and created complexity to ensure the majority of components customers purchased in BladeCenter E would be forward compatible.  At the time I liked this concept, and IBM had several great engineering concepts built in that provided real value.

In the same time frame HP released the C-Class blade chassis which had no forward/backward compatibility with previous HP blade architectures but used that fresh slate to build a world class platform that had the right technology for the time with the scalability to move far into the future.  At that point from a technical perspective I had no choice but to concede HP as the technical victor but I still whole-heartedly recommended IBM because the technical difference was minimal enough that IBM’s customer investment protection model made them the right big picture choice in my eyes.

I always work with a default preference or what I call an ‘A-Game’ as described in the link above, but my A-Game is constantly evolving.  As I discover a new technology that will work in the spaces I exist I assess it against my A-Game and decide whether it can provide better value to 80% or more of the customer base I work with.  When a technology is capable of displacing my A-Game I replace it.

Sean McGee (http://www.mseanmcgee.com/) says it better than I can, so I’ll paraphrase him ‘I’m a technologist, I work with and promote the best technology I’m aware of and can’t support a product once I know a better one exists.’

In the same fashion I’ll support and promote Cisco UCS until a better competitor proves itself, and I’m happy to see that customers agree based on the IDC reporting.

For some added fun here are some great Twitter comments from before the IDC announcement served with a side of crow:


GD Star Rating
loading...

Cisco unified Computing System (UCS) High-Level Overview

I’ve been looking for tools to supplement Power Point, Whiteboard, etc. and Brian Gracely (@bgracely) suggested I try Prezi (www.prezi.com.) Prezi is a very slick tool for non-slide based presentations.   I don’t think it will replace slides or white board for me, but it’s a great supplement.  It’s got a fairly quick learning curve if you watch the quick tutorials.  Additionally it works quite well for mind-mapping, I just throw all of my thoughts on the canvas and then start tying them together, whereas slides are very linear and take more planning.  My favorite feature of Prezi is the ability to break out of the flow, and quickly return to it at any time during a presentation.  I love this because real world discussions never go the way you mapped them out in advance.  To start learning the tool I created the following high-level overview of the Cisco Unified Computing System (UCS.)  This content is fully/usable and recyclable so do with it what you want!

GD Star Rating
loading...

Cisco Unified Computing System Value: A Customer’s Perspective

For those who do not know me, I’ve been blogging since April 2010.  My primary subject has been Cisco UCS and everything around it.  Now, when I say “everything around it”, I really mean “everything around it as it pertains to my organization”.  If you want to read a lot, you can check out my blog, http://itvirtuality.wordpress.com.  Be sure to start with the early April postings.  However, I am going to summarize how we came to purchase Cisco UCS, what our business drivers were, and what my current impressions of the product after being in production for a bit over 90 days.

Some history:  My organization exclusively used rack mounts until a friend of a C-level executive suggested we go blade.  It was a fair suggestion.  The only reason we’ve stayed rack mount so long is that the dollar savings just wasn’t there.  We own our real estate; we are the power company, etc.   All those areas where it is easy to quantify dollar savings either just don’t exist for us, or they aren’t significant.

So we started down the road of researching blades.  In the beginning, blades were scary to us.  There were so many different options to configure that it was a bit numbing.  It was at this juncture that we decided to look around and see if there was something else in the market that could simplify things for us.  It just happens that the press was still writing about Cisco UCS so naturally we homed in on it.

It wasn’t love at first sight.  We are not a Cisco shop, it was a new product, and we were a bit dubious on some of the claims.  So we did some serious research into it.  I personally read the Project California book, all the published manuals and tech-notes available at that time, and more.  I did the same for HP.  Just to be sure we were doing our due diligence, we were asked to consider IBM and a few others.  After about four months of research, we put together a technical specifications sheet just to see what the differences were.  Then we listed out all our pain points, strategic direction, and business challenges/opportunities and finally scored each vendor’s offerings in regards to the aforementioned items.  In almost every case, Cisco UCS came out on top.

Our first major comparison was price.  Believe it not; based on our 5yr estimates, Cisco was the most cost-effective.  Part of what made UCS the price leader was its affects on our data center.  Pretty much a cable once type of deal.  To top it off, we did not (and will not for the foreseeable future) need to purchase any additional SAN or network ports.  By choosing any of the other blade brands, I would have needed to purchase additional ports.

Once we completed a cost analysis, we focused on our pain points.  The top two were cable management and complexity.  We (meaning my team) hate cabling and managing those cables.  We are server administrators, not cable administrators.  Moving, adding, or removing a server means at least an extra hour of work undoing nicely bundled cables in the server cabinets and data center cable trays, tracing the appropriate cable (we don’t trust labels 100%), and then cleaning up.  We also have to ensure that we have cables of various lengths in stock so we can accommodate changes fairly quickly.  Otherwise, we have to order the appropriate lengths.  With UCS, just run the cables once and be done with it.

As for complexity, with UCS one pretty much does the bulk of the management through a single interface and at one device level (fabric interconnects).  If we went with HP, we would need to manage the blade, manage the SAN switch in the chassis, manage the network switch in the chassis, etc.  If your shop is already understaffed and overworked, why add more complexity and/or work into the environment?

On to strategic initiatives…A major strategic initiative of ours requires multi-tenancy support.  We envision ourselves are being service providers to other government entities in our area.  We arguably have the best data center around in our area (as far as local governments compare).  In the last two years we have upgraded our PDUs, UPS/Batteries, Air Conditioning, and physical security systems.  While not perfect, we found the RBAC capabilities of UCS to be ahead of the others.

A second major initiative focuses on DR.  We are in the process of building out a DR site.  Once completed, we will be able to replicate our UCS configuration (Service Profiles and such) and data over to the DR site.  Not only will we have a DR site, having a mirror UCS configuration will provide for a nice dev environment.

So now that I have been in production for a while now, what do I think of UCS?  Overall, I am happy.  I haven’t had any outages related to UCS.  Performance has been better than expected and the system gets easier to use as time goes by.  Like all new systems, you just need to get used to it.

Support has generally been excellent.  I use the word “generally” because I have noticed that sometimes a tech will give direction that will solve the issue at hand, but that direction may cause other problems.  It’s as if the technicians don’t always see the “big picture”.  Once we inform the tech that we are not so sure about the direction, a new solution will be provided that does the trick.

So what hasn’t been perfect?  Integrating into our environment was not easy.  I mentioned early on that we are not a Cisco shop.  This had ramifications in network design that we were not aware of, but we believed that the UCS product was the right way to go and redesigned part of our network to accommodate it.

We have also opened up a number of tech support tickets for errors that ended up being cosmetic only.  In other words, we were not having real problems, just erroneous errors being reported.  Most of these have been fixed in subsequent firmware upgrades.

A caveat to would be buyers: I think Cisco oversells some of the capabilities.  For example, Cisco markets that one set of fabric interconnects can support up to forty chassis.  While there may be a few customers who can do this, I am not so sure that this is a supported configuration.  Go read the current release notes and you will see that only fourteen chassis are currently supported.  The forty is a future feature and each major firmware release ups the number of chassis supported.

The same can also be said for the much ballyhooed Palo adapter.  Cisco throws around the capability to provision up to 128 vNICs.  The real number right now is 58 and it is based on the number of cables that are used to connect the chassis IOM to the fabric interconnect.  If you use two cables per IOM, you are limited to 28 vNICs.  Again, the 128 is a future feature.

Given all that we now know, all that we have gone through, all that has occurred…I would not hesitate to purchase UCS again.  I think it is a great system that has clearly been designed to overcome today’s data center challenges (cabling, cooling, etc).  It’s a system that has been designed to grow, both in features and capacity, without major modifications.  And it is a system designed for the future..

GD Star Rating
loading...

Inter-Fabric Traffic in UCS

It’s been a while since my last post, time sure flies when you’re bouncing all over the place busy as hell.  I’ve been invited to Tech Field Day next week and need to get back in the swing of things so here goes.

In order for Cisco’s Unified Computing System (UCS) to provide the benefits, interoperability and management simplicity it does, the networking infrastructure is handled in a unique fashion.  This post will take a look at that unique setup and point out some considerations to focus on when designing UCS application systems.  Because Fibre Channel traffic is designed to be utilized with separate physical fabrics exactly as UCS does this post will focus on Ethernet traffic only.   This post focuses on End Host mode, for the second art of this post focusing on switch mode use this link: http://www.definethecloud.net/inter-fabric-traffic-in-ucspart-ii.  Let’s start with taking a look at how this is accomplished:

UCS Connectivity


In the diagram above we see both UCS rack-mount and blade servers connected to a pair of UCS Fabric Interconnects which handle the switching and management of UCS systems.  The rack-mount servers are shown connected to Nexus 2232s which are nothing more than remote line-cards of the fabric interconnects known as Fabric Extenders.  Fabric Extenders provide a localized connectivity point (10GE/FCoE in this case) without expanding management points by adding a switch.  Not shown in this diagram are the I/O Modules (IOM) in the back of the UCS chassis.  These devices act in the same way as the Nexus 2232 meaning they extend the Fabric Interconnects without adding management or switches.  Next let’s look at a logical diagram of the connectivity within UCS.

UCS Logical Connectivity

imageIn the last diagram we see several important things to note about UCS Ethernet networking:

  • UCS is a Layer 2 system meaning only Ethernet switching is provided within UCS.  This means that any routing (L3 decisions) must occur upstream.
  • All switching occurs at the Fabric Interconnect level.  This means that all frame forwarding decisions are made on the Fabric Interconnect and no intra-chassis switching occurs.
  • The only connectivity between Fabric Interconnects is the cluster links.  Both Interconnects are active from a switching perspective but the management system known as UCS Manger (UCSM) is an Active/Standby clustered application.  This clustering occurs across these links.  These links do not carry data traffic which means that there is no inter-fabric communication within the UCS system and A to B traffic must be handled upstream.

At first glance handling all switching at the Fabric Interconnect level looks as though it would add latency (inter-blade traffic must be forwarded up to the fabric interconnects then back to the blade chassis.)  While this is true, UCS hardware is designed for low latency environments such as High Performance Computing (HPC.)  Because of this design goal all components operate at very low latency.  The Fabric Interconnects themselves operate at approximately 3.2us (micro seconds), and the Fabric Extenders operate at about 1.5us.  This means total roundtrip time blade to blade is approximately 6.2us right inline or lower than most Access Layer solutions.  Equally as important with this design switching between any two blades/servers in the system will occur at the same speed regardless of location (consistent predictable latency.)

The question then becomes how is traffic between fabrics handled?  The answer is that traffic between fabrics must be handled upstream (next hop device(s) shown in the diagrams as the LAN cloud.)  This is an important consideration when designing UCS implementations and selecting a redundancy/load-balancing behavior for server NICs.

Let’s take a look at two examples, first a bare-metal OS (Windows, Linux, etc.) next a VMware server.

Bare-Metal Operating System

image In the diagram above we see two blades which have been configured in an active/passive NIC teaming configuration using separate fabrics (within UCS this is done within the service profile.)  This means that blade 1 is using Fabric A as a primary path with B available for failover and blade 2 is doing the opposite.  In this scenario any traffic sent from blade 1 to blade 2 would have to be handled by the upstream device depicted by the LAN cloud.  This is not necessarily an issue for the occasional frame but will impact performance for servers that communicate frequently.

Recommendation:

For bare-metal operating systems analyze the blade to blade communication requirements and ensure chatty server to server applications are utilizing the same fabric as a primary:

  • When using a card that supports hardware failover provide only one vNIC (made redundant through HW failover) and place its primary path on the same fabric as any other servers that communicate frequently.
  • When using cards that don’t support HW failover use active/passive NIC teaming and ensure that the active side is set to the same fabric for servers that communicate frequently.

VMware Servers


In the above diagram we see that the connectivity is the same from a physical perspective but in this case we are using VMware as the operating system.  In this case a vSwitch, vDS, or Cisco Nexus 1000v will be used to connect the VMs within the Hypervisor.  Regardless of VMware switching option the case will be the same.  It is necessary to properly design the the virtual switching environment to ensure that server to server communication is handled in the most efficient way possible.

Recommendation:

  • For half-width blades requiring 10GE or less total throughput, or full-width blades requiring 20GE or less total throughput provide a single vNIC with hardware failover if available or use an active/passive NIC configuration for the VMware switching.
  • For blades requiring the total active/active throughput of available NICs determine application profiles and utilize port-groups (port-profiles with Nexus 1000v) to ensure active paths are the same for application groups which communicate heavily.

Summary:

UCS utilizes a unique switching design in order to provide high bandwidth, low-latency switching with a greatly reduced management architecture compared to competing solutions.  The networking requires a  thorough understanding in order to ensure architectural designs provide the greatest available performance.  Ensuring application groups that utilize high levels of server to server traffic are placed on the same path will provide maximum performance and minimal additional overhead on upstream networking equipment.

GD Star Rating
loading...

My First Podcast: ‘Coffee With Thomas’

I had the pleasure of joining Thomas Jones on his new podcast ‘Coffee With Thomas’.’  His podcast is always good, well put together and about 30 minutes.  It’s done in a very refreshing conversation style as if your having a cup of coffee.  If your interested in listening to us talk technology, UCS, Apple, UFC, and other topics check it out: http://www.niketown588.com/2010/09/coffee-with-thomas-episode-5-wwts.html.



Thanks for the opportunity Thomas, that was a lot of fun!

GD Star Rating
loading...

Networking Showdown: UCS vs. HP Virtual Connect (Updated)

Note: I have made updates to reflect that Virtual Connect is two words, and technical changes to explain another method of network configuration within Virtual Connect that prevents the port blocking described below.  Many thanks to the Ken Henault at HP who graciously walked me through the corrections, and beat them into my head until I understood them.

I’m sitting on a flight from Honolulu to Chicago in route home after a trip to Hawaii for customer briefings.  I was hoping to be asleep at this point but a comment Ken Henault left on my ‘FlexFabric – Small Step, Right Direction’ post is keeping me awake… that’s actually a lie, I’m awake because I’m cramped into a coach seat for 8 hours while my fiancé, who joined me for a couple of days, enjoys the first class luxuries of my auto upgrade, all the comfort in the world wouldn’t make up for the looks I got when we landed if I was the one up front.

So, being that I’m awake anyway I thought I’d address the comment from the aforementioned post.  Before I begin I want to clarify that my last post had nothing to do with UCS, I intentionally left UCS out because it was designed with FCoE in mind from the start so it has native advantages in an FCoE environment.  Additionally within UCS you can’t get away from FCoE, if you want Fibre Channel connectivity your using FCoE so it’s not a choice to be made (iSCSI, NFS, and others are supported but to connect to FC devices or storage it’s FCoE.) The blog was intended to state exactly what it did: HP has made a real step into FCoE with FlexFabric but there is still a long way to go. To see the original post click the link (http://www.definethecloud.net/?p=419.)

I’ve got a great deal of respect for both Ken and HP whom he works for.  Ken knows his stuff, our views may differ occasionally but he definitely gets the technology.  The fact that Ken knows HP blades inside, outside, backwards forwards and has a strong grasp on Cisco’s UCS made his comment even more intriguing to me, because it highlights weak spots in the overall understanding of both UCS and server architecture/design as it pertains to network connectivity.

Scope:

This post will cover the networking comparison of HP C-Class using Virtual Connect (VC) modules and Virtual Connect (VC) management as it compares to the Cisco UCS Blade System.  This comparison is the closest ‘apples-to-apples’ comparison that can be done between Cisco UCS and HP C-Class.  Additionally I will be comparing the max blades in a single HP VC domain which is 64 (4 chassis x 16 blades) against 64 UCS blades which would require 8 Chassis.

Accuracy and Objectivity:

It is not my intent to use numbers favorable to one vendor or the other.  I will be as technically accurate as possible throughout, I welcome all feedback, comments and corrections from both sides of the house.

HP Virtual Connect:

VC is an advanced management system for HP C-Class blades that allows 4 blade chassis to be interconnected and managed/networked as a single system.  In order to provide this functionality the LAN/SAN switch modules used must be VC and the chassis must be interconnected by what HP calls a stacking-link.  HP does not consider VC Ethernet modules to be switches, but for the purpose of this discussion they will be.  I make this decision based on the fact that: They make switching decisions and they are the same hardware as the ProCurve line of blade switches.

Note: this is a networking discussion so while VC has other features they are not discussed here.

Let’s take a graphical view of a 4-chassis VC domain.

image In the above diagram we see a single VC domain cabled for LAN and SAN connectivity.  You can see that each chassis is independently connected to SAN A and B for Fibre Channel access, but Ethernet traffic can traverse the stacking-links along with the domain management traffic.  This allows a reduced number of uplinks to be used from the VC domain to the network for each 4 chassis VC domain.  This solution utilizes 13 total links to provide 16 Gbps of FC per chassis (assuming 8GB uplinks) and 20 Gbps of Ethernet for the entire VC domain (with blocking considerations discussed below.)  More links could be added to provide additional bandwidth.

This method of management and port reduction does not come without its drawbacks.  In the next graphic I add loop prevention and server to server communication.


The first thing to note in the above diagram is the blocked link.  When only a single vNet is configured accross the VC Domain (1-4 chassis) only 1 link or link aggregate group may forward per VLAN.  This means that per VC domain there is only one ingress or egress point to the network per VLAN.  This is because VC is not ‘stacking’ 4 switches into one distributed switch control plane but instead ‘daisy-chaining’ four independent switches together using an internal loop prevention mechanism.  This means that to prevent loops from being caused within the VC domain only one link can be actively used for upstream connectivity per VLAN.

Because of this loop prevention system you will see multiple-hops for frames destined between servers in separate chassis, as well as frames destined upstream in the network.  In the diagram I show a worst case scenario for educational purposes where a frame from a server in the lower chassis must hop three times before leaving the VC domain.  Proper design and consideration would reduce these hops to two max per VC domain.

**Update**

This is only one of the methods available for configuring vNets within a VC domain.  The second method will allow both uplinks to be configured using separate vNets which allows each uplink to be utilized even within the same VLANs but segregates that VLAN internally.  The following diagram shows this configuration.


In this configuration server NIC pairs will be configured to each use one vNet and NIC teaming software will provide failover.  Even though both vNets use the same VLAN the networks remain separate internally which prevents looping, upstream MAC address instability etc.  For example a server utilizing only two onboard NICs would have one NIC in vNet1 and one in vNet2.  In the event of an uplink failure for vNet1 the NIC in that vNet would have no north/south access but NIC teaming software could be relied upon to force traffic to the NIC in vNet 2.

While both methods have advantages and disadvantages this will typically be the preferred method to avoid link blocking and allow better bandwidth utilization.  In this configuration the center two chassis will still require an extra one or two hops to send/receive north/south traffic depending on which vNet is being used.

**End Update**

The last thing to note is that any Ethernet cable reduction will also result in lower available bandwidth for upstream/northbound traffic to the network.  For instance in the top example above only one link will be usable per VLAN.  Assuming 10GE links, that leaves 10G bandwidth upstream for 64 servers.  Whether that is acceptable or not depends on the particular I/O profile of the applications.  Additional links may need to be added to provide adequate upstream bandwidth.  That brings us to our next point:

Calculating bandwidth needs:

Before making a decision on bandwidth requirements it is important to note the actual characteristics of your applications.  Some key metrics to help in design are:

  • Peak Bandwidth
  • Average Bandwidth
  • East/West traffic
  • North/South Traffic

For instance, using the example above, if all of my server traffic is East/West within a single chassis then the upstream link constraints mentioned are mute points.  If the traffic must traverse multiple chassis the stacking-link must be considered.  Lastly if traffic must also move between chassis as well as North/South to the network, uplink bandwidth becomes critical.  With networks it is common to under-architect and over-engineer, meaning spend less time designing and throw more bandwidth at the problem, this does not provide the best results at the right cost.

Cisco Unified Computing System:

Cisco UCS takes a different approach to providing I/O to the blade chassis.  Rather than placing managed switches in the chassis UCS uses a device called an I/O Module or Fabric Extender (IOM/FEX) which does not make switching decisions and instead passes traffic based on an internal pinning mechanism.  All switching is handled by the upstream Fabric Interconnects (UCS 6120 or 6140.)  Some will say the UCS Fabric Interconnect is ‘not-a-switch’ using the same logic as I did above for HP VC devices the Fabric Interconnect is definitely a switch.  In both operational modes the interconnect will make forwarding decisions based on MAC address.

One major architectural difference between UCS and HP, Dell, IBM, Sun blade implementations is that the switching and management components are stripped from the individual chassis and handled in the middle of row by a redundant pair of devices (fabric interconnects.)  These devices replace the LAN Access and SAN edge ports that other vendors Blade devices connect to.  Another architectural difference is that the UCS system never blocks server links to prevent loops (all links are active from the chassis to the interconnects) and in the default mode, End Host mode it will not block any upstream links to the network core.  For more detail on these features see my posts: Why UCS is my ‘A-Game Server Architecture http://www.definethecloud.net/?p=301, and UCS Server Failover http://www.definethecloud.net/?p=359.)

A single UCS implementation can scale to  a max 40 Chassis 320 servers using a minimal bandwidth configuration, or 10 chassis 80 servers using max bandwidth depending on requirements.  There is also flexibility to mix and match bandwidth needs between chassis etc.  Current firmware limits a single implementation to 12 chassis (96 servers) for support and this increases with each major release.  Let’s take a look at the 8 chassis 64 server implementation for comparison to an equal HP VC domain.


In the diagram above we see an 8 chassis 64 server implementation utilizing the minimum number of links per chassis to provide redundancy (the same as was done in the HP example above.  Here we utilize 16 links for 8 chassis providing 20Gbps of LAN and SAN traffic to each chassis.  Because there is no blocking required for loop-prevention all links shown are active.  Additionally because the Fabric Interconnects shown here in green are the access/edge switches for this topology all east/west traffic between servers in a single chassis or across chassis is fully accounted for.  Depending on bandwidth requirements additional uplinks could be added to each chassis.  Lastly there would be no additional management cables required from the interconnects to the chassis as all management is handled on dedicated, prioritized internal VLANs.

In the system above all traffic is aggregated upstream via the two fabric interconnects, this means that accounting for North/South traffic is handled by calculating the bandwidth needs of the entire system and designing the appropriate number of links.

Side by Side Comparison:

imageIn the diagram we see a maximum server scale VC Domain compared to an 8 chassis UCS domain.  The diagram shows both domains connected up to a shared two-tier SAN design (core/edge) and 3 tier network design (Access, Aggregation, Core.)  In the UCS domain all access layer connectivity is handled within the system.

In the next diagram we look at an alternative connectivity method for the HP VC domain utilizing the switch modules in the HP chassis as the access layer to reduce infrastructure.


In this method we have reduced the switching infrastructure by utilizing the onboard switching of the HP chassis as the access layer.  The issue here will be the bandwidth requirements and port costs at the LAN aggregation/SAN core.  Depending on application bandwidth requirements additional aggregation/core ports will be required which can be more costly/complex than access connectivity.  Additionally this will increase cabling length requirements in order to tie back to the data center aggregation/core layer.

Summary:

When comparing UCS to HP blade implementations a base UCS blade implementation is best compared against a single VC domain in order to obtain comparable feature parity.  The total port and bandwidth counts from the chassis for a minimum redundant system are:

  HP Cisco
Total uplinks 13 16
Gbps FC 16 per chassis N/A
Gbps Ethernet 10 per VLAN per VC Domain/ 20 Total N/A
Consolidated I/O N/A 20 per chassis
Total Chassis I/O 21 Gbps for 16 servers 20 Gbps for 8 servers



This does not take into account the additional management ports required for the VC domain that will not be required by the UCS implementation.  An additional consideration will be scaling beyond 64 servers.  With this minimal consideration the Cisco UCS will scale to 40 chassis 320 servers where the HP system scales in blocks of 4 chassis as independent VC domains.  While multiple VC domains can be managed by a Virtual Connect Enterprise Manager (VCEM) server the network stacking is done per 4 chassis domain requiring North/South traffic for domain to domain communication.

The other networking consideration in this comparison is that in the default mode all links shown for the UCS implementation will be active.  The HP implementation will have one available uplink or port aggregate uplink per VLAN for each VC domain, further restraining bandwidth and/or requiring additional ports.

GD Star Rating
loading...

10 Things to Know About Cisco UCS

Bob Olwig VP of Corporate Business Development for World Wide Technologies (www.wwt.com) asked me to provide 10 things to know about UCS for his blog http://bobolwig.wordpress.com.  See the post 10 Things to Know About Cisco UCS here: http://bobolwig.wordpress.com/2010/08/04/10-things-to-know-about-cisco-ucs/.

GD Star Rating
loading...

UCS Server Failover

I spent the day today with a customer doing a proof of concept and failover testing demo on a Cisco UCS, VMware and NetApp environment.  As I sit on the train heading back to Washington from NYC I thought it might be a good time to put together a technical post on the failover behavior of UCS blades.  UCS has some advanced availability features that should be highlighted, it additionally has some areas where failover behavior may not be obvious.  In this post I’m going to cover server failover situations within the UCS system, without heading very deep into the connections upstream to the network aggregation layer (mainly because I’m hoping Brad Hedlund at http://bradhedlund.com will cover that soon, hurry up Brad 😉

**Update** Brad has posted his UCS Networking Best Practices Post I was hinting at above.  It’s a fantastic video blog in HD, check it out here: http://bradhedlund.com/2010/06/22/cisco-ucs-networking-best-practices/

To start this off let’s get up to a baseline level of understanding on how UCS moves server traffic.  UCS is comprised of a number of blade chassis and a pair of Fabric Interconnects (FI.)  The blade chassis hold the blade servers and the FIs handle all of the LAN and SAN switching as well as chassis/blade management that is typically done using six separate modules in each blade chassis in other implementations.

Note: When running redundant Fabric interconnects you must configure them as a cluster using L1 and L2 cluster links between each FI.  These ports carry only cluster heartbeat and high-level system messages no data traffic or Ethernet protocols and therefore I have not included them in the following diagrams.

UCS Network Connectivity


Each individual blade gets connectivity to the network(s) via mezzanine form factor I/O card(s.)  Depending on which blade type you select  each blade will either have one redundant set of connections to the FIs or two redundant sets.  Regardless of the type of I/O card you select you will always have 1x10GE connection to each FI through the blade chassis I/O module (IOM.)

UCS Blade Connectivity

image In the diagram your seeing the blade connectivity for a blade with a single mezzanine slot.  You can see that the blade is redundantly connected to both Fabric A and Fabric B via 2x10GE links.  This connection occurs via the IOM which is not a switch itself and instead acts as a remote device managed by the fabric interconnect. What this means is that all forwarding decisions are handled by the FIs and frames are consistently scheduled within the system regardless of source and or destination.  The total switching latency of the UCS system is approximately equal to a top-of-rack switch or blade form factor LAN switch within other blade products.  Because the IOM is not making switching decisions it will need another method to move 8 internal mid-plane ports traffic upstream using it’s 4 available uplinks.  the method it uses is static pinning.  This method provides a very elegant switching behavior with extremely predictable failover scenarios. Let’s first look at the pinning later what this means for the UCS network failures.

Static Pinningimage

The chart above shows the static pinning mechanism used within UCS.  Given the configured number of uplinks from IOM to FI you will know exactly which uplink port a particular mid-plane port is using.  Each half-width blade attaches to a single mid-plane port and each full width blade attaches to two.  In the diagram the use of three ports does not have a pinning mechanism because this is not supported.  If three links are used the 2 port method will define how uplinks are utilized.  This is because eight devices cannot be evenly load-balanced across three links.

IOM Connectivity


The example above shows the numbering of mid-plane ports.  If you were using half width blades their numbering would match.  When using full-width blades each blade has access to a pair of mid-plane ports (1-2, 3-4, 5-6, 7-8.)In the example above blade three would utilize mid-plane port three in the left example and one in the second based on the static pinning in the chart.

So now let’s discuss how failover happens, starting at the operating system.  We have two pieces of failover to discuss, NIC teaming, and SAN multi-pathing.  In order to understand that we need a simple logical connectivity view of how a UCS blade see’s the world.

UCS Logical Connectivity


In order to simplify your thinking when working with blade systems reduce your logical diagram to the key components, do this by removing the blade chassis itself from the picture.  Remember that a blade is nothing more than a server connected to a set of switches, the only difference is that the first hop link is on the mid-plane of the chassis rather than a cable.  The diagram above shows that a UCS blade is logically cabled directly to redundant Storage Area Network (SAN) switches for Fibre Channel (FC) and to the FI for Ethernet.  Out of personal preference I leave the FIs out of the SAN side of the diagram because they operate in N_Port Virtualizer (NPV) mode which means forwarding decisions are handled by the upstream NPiV standard compliant SAN switch.

Starting at the Operating System (OS) we will work up the network stack to the FIs to discuss failover.  We will be assuming FCoE is being used, if you are not using FCoE ignore the FC piece of the discussion as the Ethernet will remain the same.

SAN Multi-Pathing:

SAN multi-pathing is the way we obtain redundancy in FC, FCoE, and iSCSI networks.  It is used to provide the OS with two separate paths to the same logical disk.  This allows the server to access the data in the event of a failure and in some cases load-balance traffic across two paths to the same disk.  Multi-pathing comes in two general flavors: active/active, or active passive.  Active/active load balances and has the potential to use the full bandwidth of all available paths.  Active/Passive uses one link as a primary and reserves the others for failover.  Typically the deciding factor is cost vs. performance.

Multi-pathing is handled by software residing in the OS usually provided by the storage vendor.  The software will monitor the entire path to the disk ensuring data can be written and/or read from the disk via that path.  Any failure in the path will cause a multi-pathing failover.

Multi-Pathing Failure Detection


Any of the failures designated by the X’s in the diagram above will trigger failover, this also includes failure of the storage controller itself which are typically redundant in an enterprise class array.  SAN multi-pathing is an end-to-end failure detection system.  This is much easier to implement in SAN as there is one constant target as opposed to a LAN where data may be sent to several different targets across the LAN and WAN.  Within UCS SAN multi-pathing does not change from the system used for standalone servers.  Each blade is redundantly connected and any path failure will trigger a failover.

NIC-Teaming:

NIC teaming is handled in one of three general ways: active/active load-balancing, active/passive failover, or active/active transmit with active/passive receive.  The teaming type you use is dependant on the network configuration.

Supported teaming Configurations


In the diagram above we see two network configurations, one with a server dual connected to two switches, and a second with a server dual connected to a single switch using a bonded link.  Bonded links act as a single logical link with the redundancy of the physical links within.  Active/Active load-balancing is only supported using a bonded link due to MAC address forwarding decisions of the upstream switch.  In order to load balance an active/active team will share a logical MAC address, this will cause instability upstream and lost packets if the upstream switches don’t see both links as a single logical link.  This bonding is typically done using the Link Aggregation Control Protocol (LACP) standard.

If you glance back up at the UCS logical connectivity diagram you’ll see that UCS blades are connected in the method on the left of the teaming diagram.  This means that our options for NIC teaming are Active/Passive failover and Active Active transmit only.  This is assuming a bare metal OS such as Windows or Linux installed directly on the hardware, when using virtualized environments such as VMware all links can be actively used for transmit and receive because there is another layer of switching occurring in the hypervisor.

I typically get feedback that the lack of active/active NIC teaming on UCS bare metal blades is a limitation.  In reality this is not the case.  Remember Active/Active NIC teaming was traditionally used on 1GE networks to provide greater than 1GE of bandwidth.  This was limited to a max of 8 aggregated links for a total of 8GE of bandwidth.  A single UCS link at 10GE provides 20% more bandwidth than an 8 port active/active team.

NIC teaming like SAN multi-pathing relies on software in the OS, but unlike SAN multi-pathing it typically only detects link failures and in some cases loss of a gateway.  Due to the nature of the UCS system NIC teaming in UCS will detect failures of the mid-plane path, the IOM, the utilized link from the IOM to the Fabric Interconnect or the FI itself.  This is because the IOM is a linecard of the FI and the blade is logically connected directly to the FI.

UCS Hardware Failover:

UCS has a unique feature on several of the available mezzanine cards to provide hardware failure detection and failover on the card itself.  Basically some of the mezzanine cards have a mini-switch built in with the ability to fail path A to path B or vice versa.  This provides additional failure functionality and improved bandwidth/failure management.  This feature is available on Generation I Converged network Adapters (CNA) and the Virtual Interface Card (VIC) and is currently only available in UCS blades.

UCS Hardware Failover


UCS Hardware failover will provide greater failure visibility than traditional NIC teaming due to advanced intelligence built into the FI as well as the overall architecture of the system.  In the diagram above HW failover detects: mid-plane path, IOM and IOM uplink failures as link failures due to the architecture.  Additionally if the FI loses it’s upstream network connectivity to the LAN it will signal a failure to the mezzanine card triggering failure.  In the diagram above any failure at a point designated by an X will trigger the mezzanine card to divert Ethernet traffic to the B path.  UCS hardware failover applies only to Ethernet traffic as SAN networks are built as redundant independent networks and would not support this failover method.

Using UCS hardware failover provides two key advantages over other architectures:

  • Allows redundancy for NIC ports in separate subnets/VLANs which NIC teaming cannot do.
  • Provides the ability for network teams to define the failure capabilities and primary path for servers alleviating misconfigurations caused by improper NIC teaming settings.
    IOM Link Failure:

The next piece of UCS server failover involves the I/O modules themselves.  Each I/O module has a maximum of four 10GE uplinks providing 8x10GE mid-plane connections to the blades at an oversubscription of 1:1 to 8:1 depending on configuration.  As stated above UCS uses a static non-configurable pinning mechanism to assign a mid-plane port to a specific uplink from the IOM to the FI.  Using this pinning system allows the IOM to operate as an extension of the FI without the need for Spanning Tree Protocol (STP) within the UCS system.  Additionally this system provides a very clear network design for designing oversubscription in both nominal and failure situations.

For the discussion of IOM failover we will use an example of a max configuration of 8 half-width blades and 4 uplinks on each redundant IOM.

Fully Configured 8 Blade UCS Chassis

image In this diagram each blade is currently redundantly connected via 2x10GE links.  One link through each IOM to each FI.  Both IOMs and FIs operate in an active/active fashion from a switching perspective so each blade in this scenario has a potential bandwidth of 20GE depending on the operating system configuration.  The overall blade chassis is configured with 2:1 oversubscription in this diagram as each IOM is using its max of 4x10GE uplinks while providing its max of 8x10GE mid-plane links for the 8 blades.  If each blade were to attempt to push a sustained 20GE of throughput at the same time (very unlikely scenario) it would receive only 10GE because of this oversubscription.  The bandwidth can be finely tuned to ensure proper performance in congestion scenarios such as this one using Quality of Service (QoS) and Enhanced Transmission Selection (ETS) within the UCS system.

In the event that a link fails between the IOM and the FI the servers pinned to that link will no longer have a path to that FI.  The blade will still have a path to the redundant FI and will rely on SAN multi-pathing, NIC teaming and or UCS hardware failover to detect the failure and divert traffic to the active link.

For example if link one on IOM A fails blades one and five would lose connectivity through Fabric A and any traffic using that path would fail to link one on Fabric B ensuring the blade was still able to send and receive data.  When link one on IOM A was repaired or replaced data traffic would immediately be able to start using the A path again.

IOM A will not automatically divert traffic from Blade one and five to an operational link, nor is this possible through a manual process.  The reason for this is that diverting blade one and fives traffic to available links would further oversubscribe those links and degrade servers that should be unaffected by the failure of link one.  In a real world data center a failed link will be quickly replaced and the only servers that will have been affected are blade one and five.

In the event that the link cannot be repaired quickly there is a manual process called re-acknowledgement which an administrator can perform.  This process will adjust the pinning of IOM to FI links based on the number of active links using the same static pinning referenced above.  In the above example servers would be re-pinned based on two active ports because three port configurations are not supported.

Overall this failure method and static pinning mechanism provides very predictable bandwidth management as well as limiting the scope of impact for link failures.

Summary:

The UCS system architecture is uniquely designed to minimize management points and maximize link utilization by removing dependence on STP internally.  Because of its unique design network failure scenarios must be clearly understood in order to maximize the benefits provided by UCS.  The advanced failure management tools within UCS will provide for increased application uptime and application throughput in failure scenarios if properly designed.

GD Star Rating
loading...

Why Cisco UCS is my ‘A-Game’ Server Architecture

A-Game:

When I discuss my A-Game it’s my go to hardware vendor for a specific data center component.  For example I have an A-Game platform for:

  • Storage
  • SAN
  • LAN (access Layer LAN specifically, you don’t want me near your aggregation, core or WAN)
  • Servers and Blades (traditionally this has been one vendor for both)

As this post is in regards to my server A-Game I’ll leave the rest undefined for now and may blog about them later.

Over the last 4 years I’ve worked in some capacity or another as an independent customer advisor or consultant with several vendor options to choose from.  This has been either with a VAR or strategic consulting firm such as www.fireflycom.net.)  In both cases there is typically a company lean one way or another but my role has given me the flexibility to choose the right fit for the customer not my company or the vendors which is what I personally strive to do.  I’m not willing to stake my own integrity on what a given company wants to push today.  I’ve written about my thoughts on objectivity in a previous blog (http://www.definethecloud.net/?p=112.)

Another rule in regards to my A-Game is that it’s not a rule, it’s a launching point.  I start with a specific hardware set in mind in order to visualize the customer need and analyze the best way to meet that need.  If I hit a point of contention that negates the use of my A-Game I’ll fluidly adapt my thinking and proposed architecture to one that better fits the customer.  These points of contention may be either technical, political, or business related:

  • Technical: My A-Game doesn’t fit the customers requirement due to some technical factor, support, feature, etc.
  • Political: My A-Game doesn’t fit the customer because they don’t want Vendor X (previous bad experience, hype, understanding, etc.)
  • Business: My A-Game isn’t on an approved vendor list, or something similar.

If I hit one of these roadblocks I’ll shift my vendor strategy for the particular engagement without a second thought.  The exception to this is if one of these roadblocks isn’t actually a roadblock and my A-Game definitely provides the best fit for the customer I’ll work with the customer to analyze actual requirements and attempt to find ways around the roadblock.

Basically my A-Game is a product or product line that I’ve personally tested, worked with and trust above the others that is my starting point for any consultative engagement.

A quick read through my blog page or a jump through my links will show that I work closely with Cisco products and it would be easy to assume that I am therefore inherently skewed towards Cisco.  In reality the opposite is true, over the last few years I’ve had the privilege to select my job(s) and role(s) based on the products I want to work with.

My sorted UCS history:

As anyone who’s worked with me can attest to I’m not one to pull punches, feign friendliness, or accept what you try and sell me based on a flashy slide deck or eloquent rhetoric.  If you’re presenting to me don’t expect me to swallow anything without proof, don’t expect easy questions, and don’t show up if you can’t put the hardware in my hands to cash the checks your slides write.  When I’m presenting to you, I expect and encourage the same.

Prior to my exposure to UCS I worked with both IBM and HP servers and blades.  I am an IBM Certified Blade Expert (although dated at this point.)  IBM was in fact my A-Game server and blade vendor.  This had a lot to do with the technology of the IBM systems as well as the overall product portfolio IBM brought with it.  That being said I’d also be willing to concede that HP blades have moved above IBM’s in technology and innovation, although IBM’s MAX5 is one way IBM is looking to change that.

When I first heard about Cisco’s launch into the server market I thought, and hoped, it was a joke.  I expected some Frankenstein of a product where I’d place server blades in Nexus or Catalyst chassis.  At the time I was working heavily with the Cisco Nexus product line primarily 5000, 2000, and 1000v.  I was very impressed with these products, the innovation involved, and the overall benefit they’d bring to the customer.  All the love in the world for the Nexus line couldn’t overcome my feeling that there was no way Cisco could successfully move into servers.

Early in 2009 my resume was submitted among several others by my company to Learning at Cisco and the business unit in charge of UCS.  This was part of an application process for learning partners in order to be invited to the initial external Train The Trainer (TTT) and participate in training UCS to: Cisco, partners, and customers worldwide.  Myself and two other engineer/trainers (Dave Alexander and Fabricio Grimaldi) were selected from my company to attend.  The first interesting thing about the process was that the three of us were selected above CCIEs, 2x CCIEs and more experienced instructors from our company based on our server backgrounds.  It seemed Cisco really was looking to push servers not some network adaptation.

During the TTT I remained very skeptical.  The product looked interesting but not ‘game-changing.’  The user interfaces were lacking and definitely showed their Alpha and Beta colors.  Hardware didn’t always behave as expected and the real business/technological benefits of the product didn’t shine through.  That being said remember that at this point the product was months away from launch and this was a very Beta version of hardware/software we were working with.  Regardless of the underlying reasons I walked away from the TTT feeling fully underwhelmed.

I spent the time on my flight back to the East Coast from San Jose looking through my notes and thinking about the system and components.  It definitely had some interesting concepts but I didn’t feel it was a platform I would stake my name to at this point.

Over the next couple of months Fabricio Grimaldi and I assisted Dave Alexander (http://theunifiedcomputingblog.com) in developing the UCS Implementation certification course.  Through this process I spent a lot of time digging into the underlying architecture, relating it back to my server admin days and white boarding the concepts and connections in my home office.  Additionally I got more and more time on the equipment to ‘kick-the-tires.’  During this process Dave myself and Fabrico began instructing an internal Cisco course known as UCS Bootcamp.  The course was designed for Cisco engineers from both pre-sales and post-sales roles and focused specifically on the technology as a product deep dive.

It was over these months having discussions on the product, wrapping my head around the technology, and developing training around the components that the lock cylinders in my brain started to click into place and finally the key turned: UCS changes the game for server architecture, the skeptic had become a convert.

UCS the game changer:

The term game changer ge
ts thrown around all willy nilly like in this industry.  Every minor advancement is touted by its owner as a ‘Game Changer.’  In reality ‘Game Changers’ are few and far between.  In order to qualify you must actually shift the status quo, not just improve upon it.  To use vacuums as an example, if your vacuum sucks harder it just sucks harder, it doesn’t change the game.  A Dyson vacuum may vacuum better than anyone else’s but Roomba (http://www.irobot.com/uk/home_robots.cfm) is the one that changed the game.  With Dyson I still have to push the damn thing around the living room, with Roomba I watch it go.

In order to understand why UCS changes the game rather than improving upon it, you first need to define UCS:

UCS is NOT a blade system it is a server architecture

Cisco’s unified Computing System (UCS) is not all about blades, it is about rack mount servers, blade servers, and management being used as a flexible pool of computing resources.  Because of this it has been likened to an x86-64 based mainframe system.

UCS takes a different approach to the original blade system designs.  It’s not a solution for data center point problems (power, cooling, management, space, cabling) in isolation it’s a redefinition of the way we do computing.

‘Instead of asking how can I improve upon current architectures’

Cisco/Nuova asked

What’s the purpose of the server and what’s the best way to accomplish that goal.’

Many of the ideas UCS utilizes have been tried and implemented in other products before: Unified I/O, single point of management, modular scalability, etc., but never all in one cohesive design.

There are two major features of UCS that I call ‘the cake’ and three more that are really icing.  The two cake features are the reason UCS is my A-Game and the others just further separate it.

  • Unified Management
  • Workload Portability

Unified Management:

Blade architectures are traditionally built with space savings as a primary concern.  In order to do this a blade chassis is built with a shared LAN, SAN, power, cooling infrastructure and an onboard management system to control server hardware access, fan speeds, power levels, etc.  M. Sean McGee describes this much better than I could hope to in his article The “Mini-Rack” approach to Blade Design (http://bit.ly/bYJVJM.)  This traditional design saves space and can also save on overall power, cooling, and cabling but causes pain points in management among other considerations.

UCS was built from the ground up with a different approach, and Cisco has the advantage of zero legacy server investment which allows them to execute on this.  The UCS approach is:

  • Top-of-Rack networking should be Top-Of-Rack not repeated in each blade chassis.
  • Management should encompass the entire architecture not just a single chassis.
  • Blades are only 40% of the data center server picture, rack mounts should not be excluded.
    The UCS Approach


The key difference here is that all management of the LAN, SAN, server hardware, and chassis itself is pulled into the access layer and performed on the UCS Fabric Interconnect which provides all of the switching and management functionality for the system.  The system itself was built from the ground up with this in mind, and as such this is designed into each hardware component.  Other systems that provide a single point of management do so by layering on additional hardware and software components in order to manage underlying component managers.  Additionally these other systems only manage blade enclosures while UCS is designed to manage both blades and traditional rack mounts from one point.  This functionality will be available in firmware by the end of CY10.

To put this in perspective Cisco UCS provides a very similar rapid repeatable physical server deployment model to the virtual server deployment model VMware provides.  Through the use of granular Role Based Access Control (RBAC) UCS ensures that organizational changes are not required, while at the same time providing the flexibility to streamline people and process if desired.

Workload Portability:

Workload portability has significant benefits within the data center, the concept itself is usually described as ‘statelessness.’  If you’re familiar with VMware this is the same flexibility VMware provides for virtual machines, i.e. there is no tie to the underlying hardware. One of the key benefits of UCS is the ability to apply this type of statelessness at the hardware level.  This removes the tie of the server or workload to the blade or slot it resides in, and provides major flexibility to maintenance and repair cycles, as well as deployment times for new or expanding applications.

Within UCS all management is performed on the Fabric Interconnect through the UCS Manager GUI or CLI.  This includes any network configuration for blades, chassis, or rack-mounts, all server configuration including firmware BIOS, NIC/HBA and boot order among other things.  The actual blade is configured through an object called a ‘service profile’.’  This profile defines the server on the network as well as the way in which the server hardware operates (BIOS/Firmware, etc.)

All of the settings contained within a server profile are traditionally configured, managed and stored in hardware on a server.  Because these are now defined in a configuration file the underlying hardware tie is stripped away and a server workload can be quickly moved from one physical blade to another without requiring changes in the networks, or storage arrays.  This decreases maintenance windows and speeds roll-out.

Within UCS, Service Profiles can be created using templates or pools which is unique to UCS.  This further increases the benefits of service profiles and decreases the risk inherent with multiple configuration points, and case-by-case deployment models.

UCS Profiles and Templates


These two features and their real world applications and value are what place UCS in my A-Game slot.  These features will provide benefits to ANY server deployment model, and are unique to UCS.  While subcomponents exist within other vendors they are not:

  • Designed into the hardware
  • Fully integrated without the need for additional hardware and software and licensing
  • As robust

Icing on the cake:

  • Dual socket server memory scalability and flexibility (Cisco memory expander technology)
  • Integration with VMware and advanced networking for virtual switching
  • Unified fabric (I/O consolidation)

Each of these feature also offer real world benefits but the real heart of UCS is the Unified management and server statelessness.  You can find more information on these other features through var
ious blogs and Cisco documentation.

When is it time for my B-Game?:

By now you should have an understanding as to why I chose UCS as my A-Game (not to say you necessarily agree, but that you understand my approach.)  So what are the factors that move me towards my B-Game?  I will list three considerations and the qualifying question that would finalize a decision to position a B-Game system:

Infiniband If the customer is using Infiniband for networking UCS does not currently support it.  I would first assess whether there was an actual requirement for Infiniband or if it was just the best option at the time of last refresh.  If Infiniband is required I would move to another solution.
Non-Intel Processors Requirement for non-Intel processors would steer me towards another vendor as UCS does not currently support non-Intel.  As above I would first verify whether non-Intel was a requirement or a choice.
Requirement for chassis based storage If a customer had a requirement for chassis based storage there is no current Cisco offering for this within UCS.  This is however very much a corner case and only a configuration I would typically recommend for single chassis deployments with little need to scale.  In-chassis storage becomes a bottle neck rather than a benefit in multi-chassis configurations.

While there are other reasons I may have to look at another product for a given engagement they are typically few and far between.  UCS has the right combination of entry point and scalability to hit a great majority of server deployments.  Additionally as a newer architecture there is no concern with the architectural refresh cycle of other vendors.  As other blade solutions continue to age there will be an increased risk to the customer in regards to forward compatibility.

Summary:

UCS is not the only server or blade system on the market, but it is the only complete server architecture.  Call it consolidated, unified, virtualized, whatever but there isn’t another platform to combine rack-mounts and blades under a single architecture with a single management window and tools for rapid deployment.  The current offering is appropriate for a great majority of deployments and will continue to get better.

If your considering a server refresh or new deployment it would be a mistake not to take a good look at the UCS architecture.  Even if it’s not what you choose it may give you some ideas as to how you want to move forward, or features to ask your chosen vendor for.

Even if you never buy a UCS server you can still thank Cisco for launching UCS.  The lower pricing you’re getting today, and the features being put in place on other vendors product lines are being driven by a new server player in the market, and the innovation they launched with.

Comments, concerns, complaints always appreciated!

GD Star Rating
loading...
